Royal Enfield Goan Classic 350 Specifications

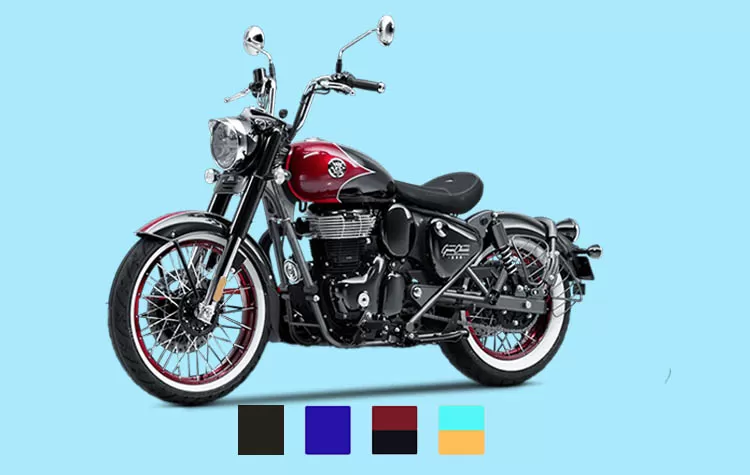

Goan Classic 350 is a latest bike from Royal Enfield. It comes with 349cc, single cylinder 4 stroke engine and dual channel ABS brake system. Royal Enfield Goan Classic 350 available in 4 colours Purple Haze, Shack Black, Trip Teal and Rave Red.

Royal Enfield Goan Classic 350 Full Specifications

Here are the specification of Royal Enfield Goan Classic 350 for Engine, Chasis & Suspension, Brakes & Tyres, Electricals and Colours.

ENGINE

Engine Capacity: 349
Type: SINGLE CYLINDER, 4 STROKE
Fuel supply: Electronic Fuel Injection
Cam Drive: SOHC
Cooling: Air-oil Cooled
Bore (MM): 75
Stroke (MM): 85.8
Compression Ratio: 9.5:1
Valves: 2
Power (BHP): 20.2
Max Power RPM: 6100
Torque (NM): 27
Max Torque RPM: 4000
Max RPM: 7000
Fuel Economy (KMPL): 36.2
Clutch: Wet Multiplate
Gears: 5
Primary Drive Ratio: 2.313
1st Gear Ratio: 2.615
2nd Gear Ratio: 1.706
3rd Gear Ratio: 1.3
4th Gear Ratio: 1.04
5th Gear Ratio: 0.875
Final Drive Ratio: 2.8

CHASSIS & SUSPENSION

Mass - wet (KG) kerb mass (90% fuel): 197
Mass - dry (KG) (ready to ride without fuel): 188
Payload (KG): 178
Front axle weight wet: 92
Rear axle weight wet: 105
Gvw (KG): 375
Fuel capacity: 13 L
Seat height ( OUP): 750
Ground clearance ( OUP=bike weight only=at static sag): 170
Rake /head angle (DEG) (OUP): 26
Trail (MM) (OUP): 110
Fork offset: 44.5
Steering lock (DEG): 43
Wheelbase (MM) ( OUP): 1400
Length: 2130
Width (W/O Mirror): 825
Height(W/O Mirror): 1200

BRAKES & TYRES

Tyre, Front Spoke Wheel: 100/90 - 19" -63p (Tubeless Type)
Rim, Front: 2.15x19
Tyre, Rear Spoke Wheel: 130/90 - 16" -74p (Tubeless Type)
Rim, Rear: 3x16
Front Tyre Pressure: Solo&dual 22 PSI
Rear Tyre Pressure: Solo&dual 25 PSI
Frame: Twin Downtube Spine Frame
Suspension, Front: Telescopic, 41mm Forks
Travel - Front (MM): 130 MM
Suspension, Rear: Rear Twin Tube Emulsion Shock Absorbers With 6-step Adjustable Preload
Travel - Rear Wheel (MM): 105.3
Brakes, Front: 300 MM Fixed Disc With Twin Piston Floating Caliper
Brakes, Rear: 270 MM Disc, Single Piston Floating Caliper
ABS Type: Dual Channel
