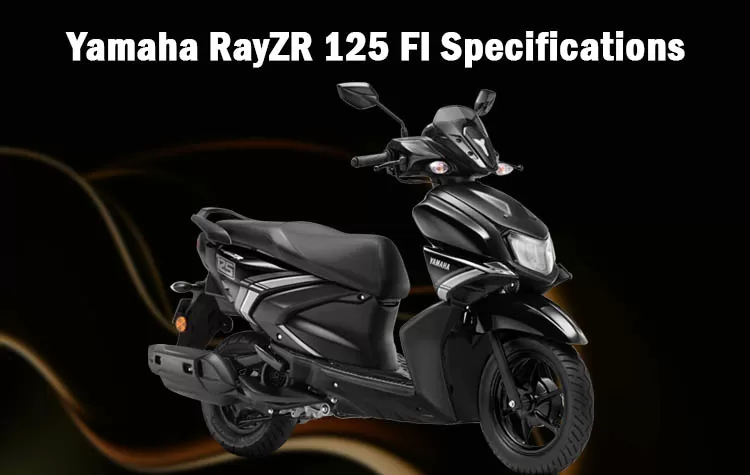

Yamaha RayZR 125 FI Specifications

The Yamaha RayZR 125 FI is a powerful and fashionable scooter that sports a 125cc air-cooled, 4-stroke SOHC engine with a hybrid system to ensure better performance. It comes with a maximum torque of 10.3 N.m at 5000 r/min and 8.2PS power at 6500 r/min, augmented by the Smart Motor Generator (SMG) system and Stop & Start System (SSS) for better efficiency. With its sleek profile, its size measures 1,880 x 685 x 1,190 mm, with a 785 mm seat height, 1280 mm wheelbase, and 99 kg kerb weight. The scooter has good storage space with a 21L underseat storage and a 5.2L fuel tank. It boasts front telescopic suspension, tubeless tyres, and disc or drum braking options with Unified Braking System (UBS). For added convenience, it comes with a digital meter console (Disc variant), LED position lights, and Y-Connect connectivity. Available in vibrant Cyan Blue, Metallic Black, and Matte Red colors, the Yamaha RayZR 125 FI combines performance, style, and advanced features to elevate your riding experience.

Check out the Yamaha RayZR 125 FI Price List for the latest pricing details. Click here for the full price list.

Yamaha RayZR 125 FI Full Specifications

Here are the specification of Yamaha RayZR 125 FI for Engine, Dimensions, Chasis, Electrical, Colours and more.

ENGINE

Engine Type: Air cooled, 4-stroke,SOHC, 2-valve
Hybrid: Equipped
Displacement: 125 cc
Bore & Stroke: 52.4x57.9mm
Maximum Torque (With Assist Function Working): 10.3 N.m(1.1kgf.m)/5000 r/min
Compression Ratio: 10.2:1
Maximum Horse Power: 6.0kW(8.2PS)/6500r/min
Stop & Start System (SSS): Equipped
Fuel System: Fuel injection
Starting System Type: Electric starter
Transmission Type: V-Belt Automatic
Smart Motor Generator(SMG) System: Equipped

DIMENSIONS

Overall Length X Width X Height: Disc/Drum:1,880 x 685 x 1,190 (Spec. in mm)
Seat Height: 785 mm
Wheelbase: 1280 mm
Minimum Ground Clearance: 145 mm
Kerb Weight (With Oil And Full Fuel Tank): 99 kg
Fuel Tank Capacity: 5.2 L
Underseat Storage: 21 L
